Old Man Emu Luftbelg kit for Parabolic bladfjær Hilux

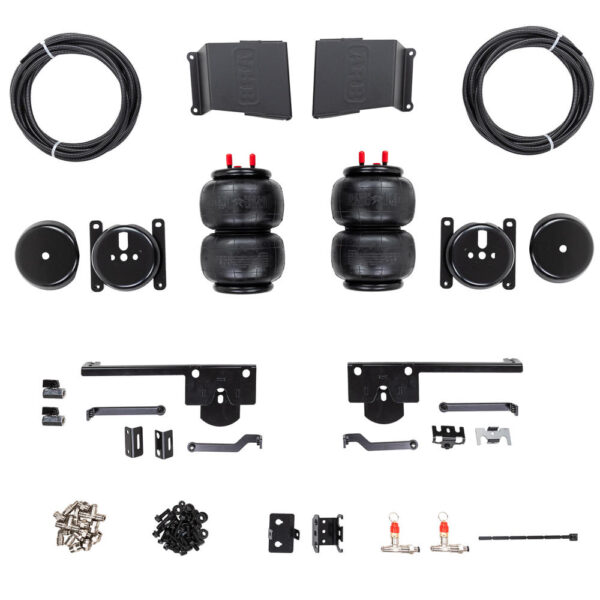

Included in the Air Bag kit is:

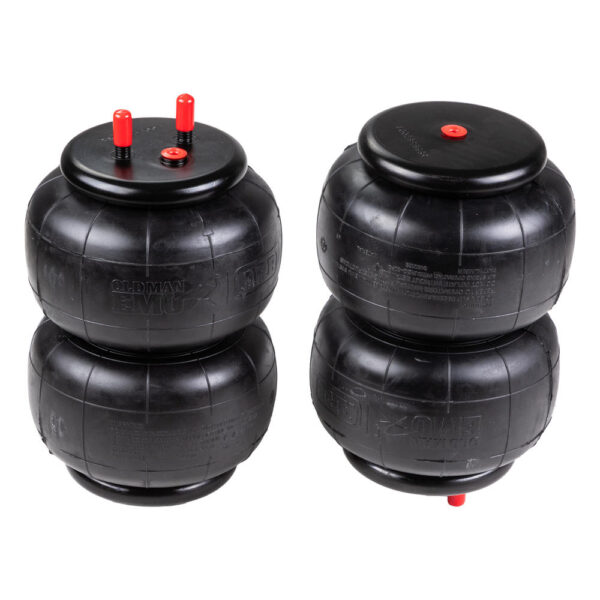

• 2x OME Air Bags
• Vehicles specific mounting brackets
• 2x Air Lines
• 2x Inflation valves (Schrader type)
• 2x Purge valves
• Exhaust heat shield
• Air fittings
• Vent filters
• Comprehensive fitting instructions

INFLATING THE AIR BAG
There are three ways of inflating and deflating the Air Bags in this kit:

1. Manually via the Schrader inflation valves including with every Air Bag Kit
   • Can be inflated with any compressed air source such as your mountable or portable ARB Air Compressor or using the tyre inflator at a petrol station. Uses the manual Purge Valve Tap included in the kit to purge or hold air
2. Electronically via the all-new ARB Air Suspension Control (part no. 0830002)
   • Inflation and deflation control in the palm of your hands via a smart phone app
   • Uses a pressure regulating valve, isolation valves and an ECU permanently connected to your mounted ARB Air Compressor, then controlled by the smart phone app
   • Use the Air Bag Purge Control Kit (part no. OMEABK001) to have electronic control of the purge function also
3. Electronically via the market leading ARB LINX Vehicle Accessory Interface (part no. LX100)
   • Complete inflation and deflation control from a dedicated vehicle accessory interface mounted on the a-pillar, inside the vehicle
   • Uses a pressure regulating valve, isolation valves and the LINX ECU permanently connected to your mounted ARB Air Compressor for truly integrated control
   • Use the Air Bag Purge Control Kit (part no. OMEABK001) to have electronic control of the purge function also
